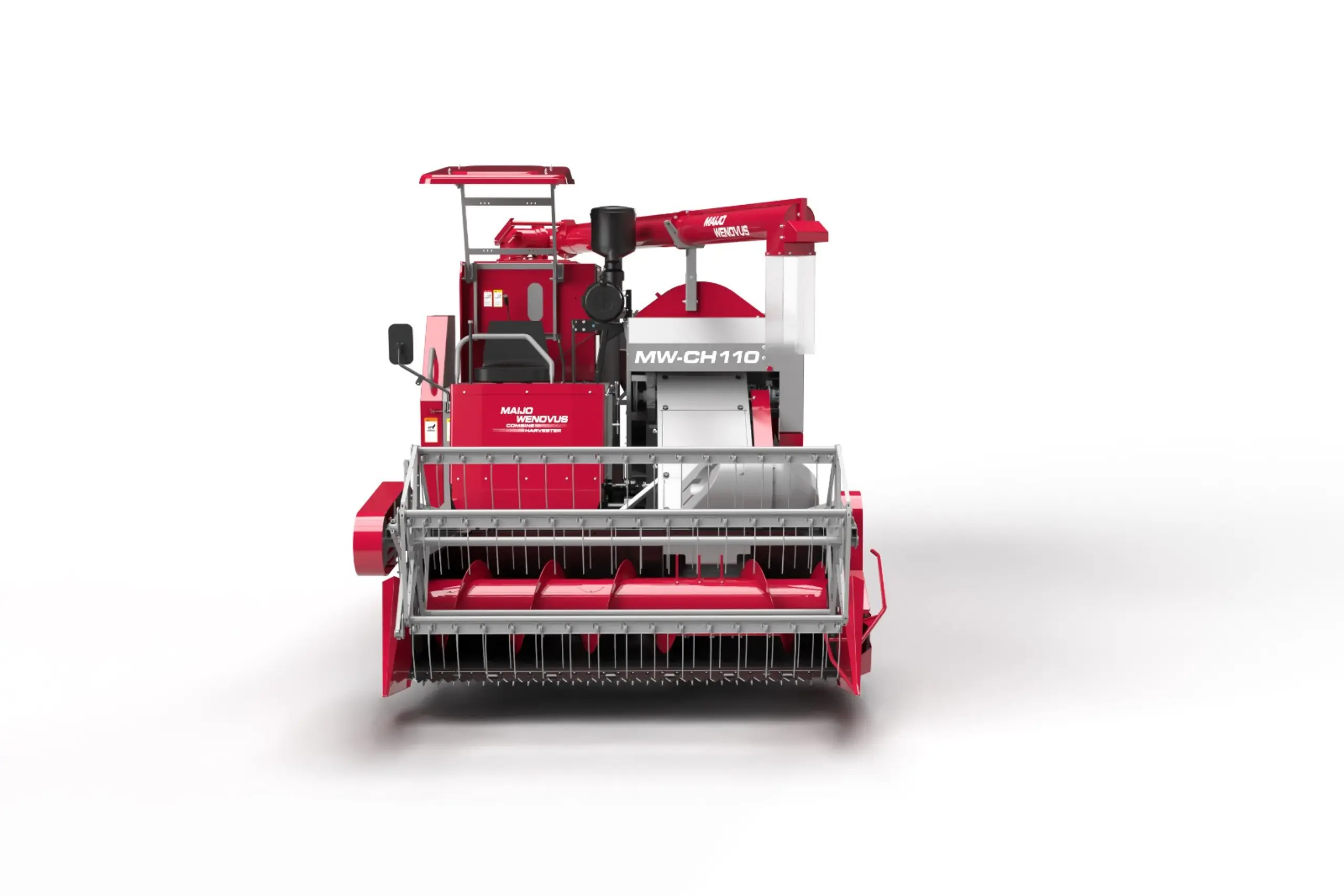

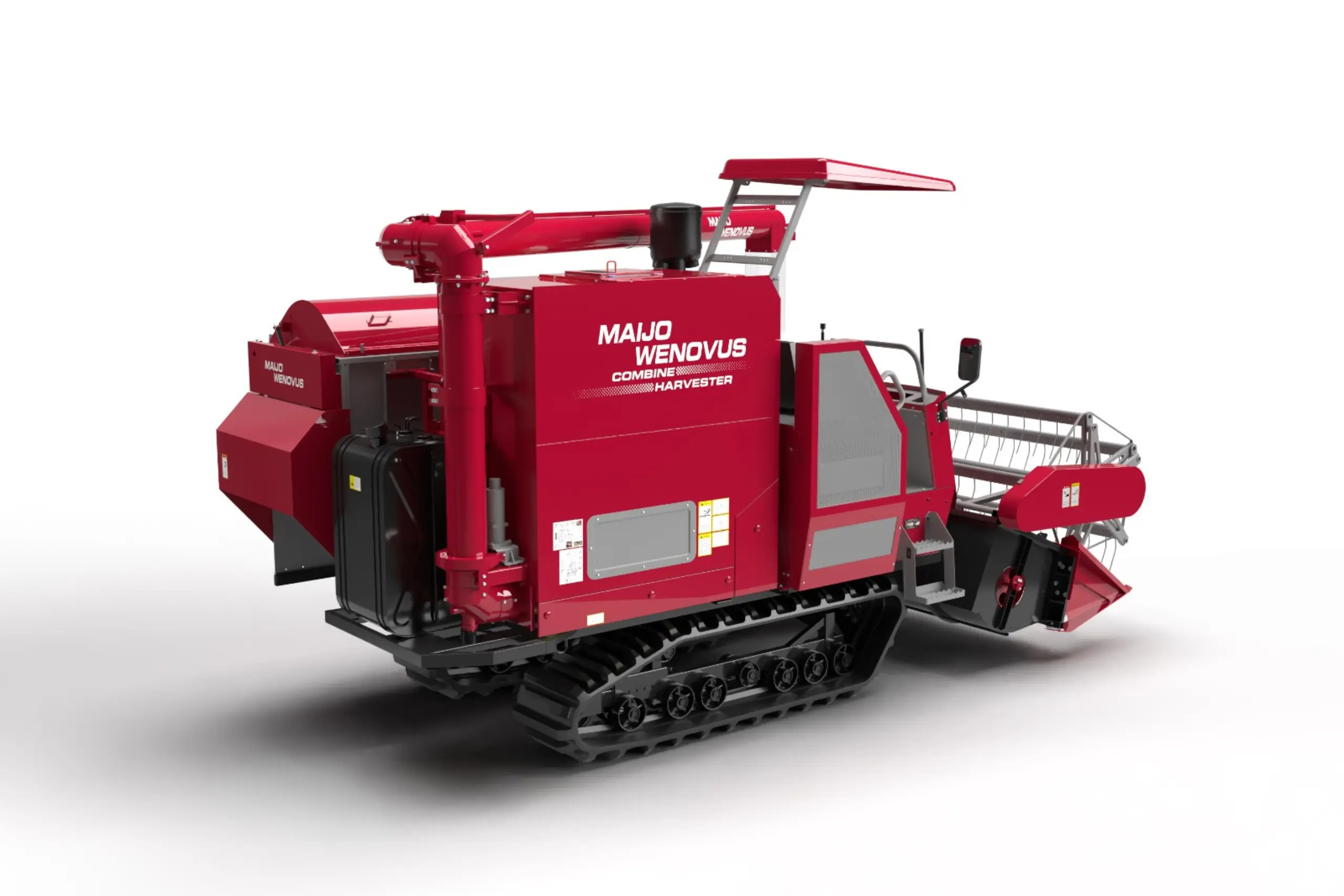

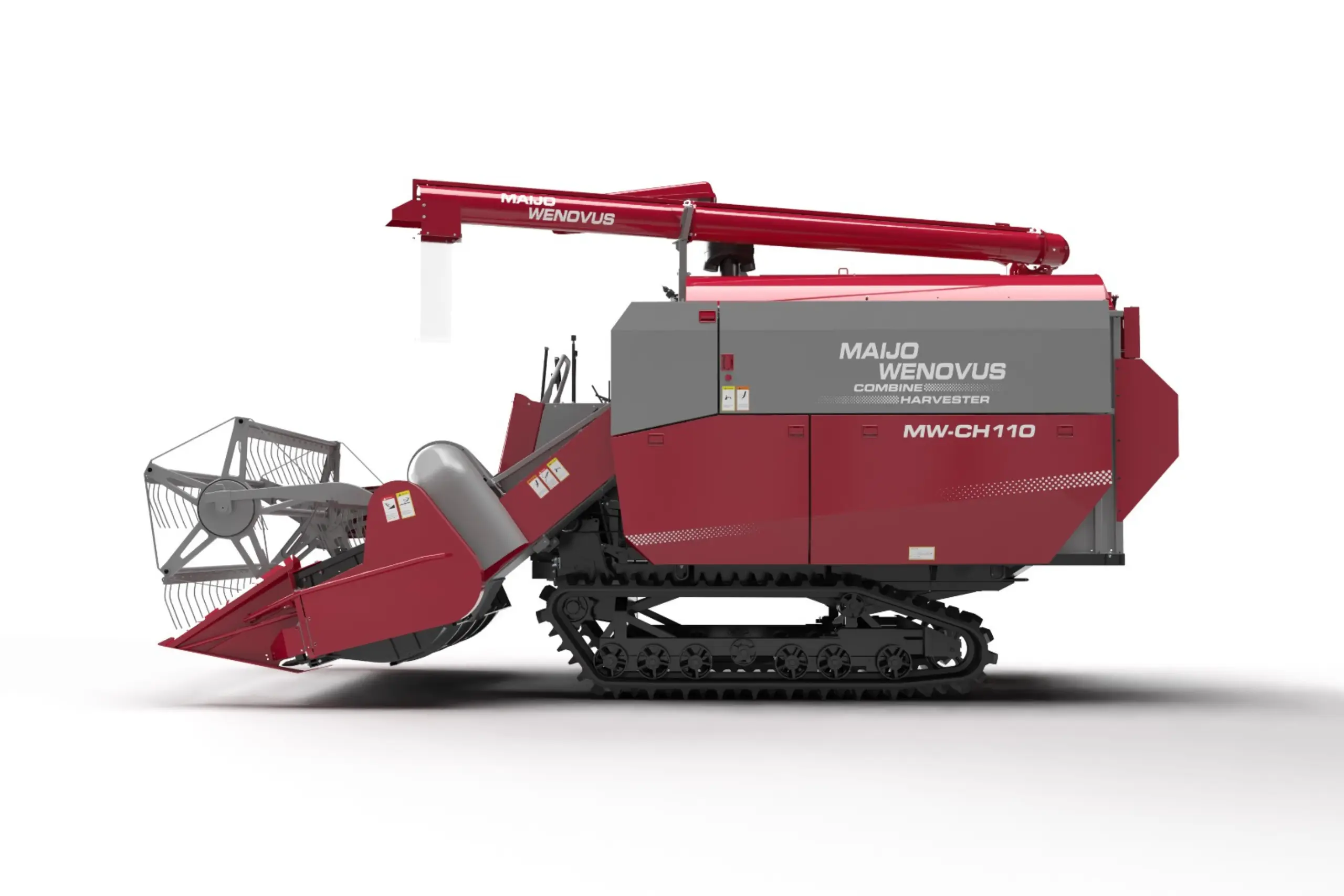

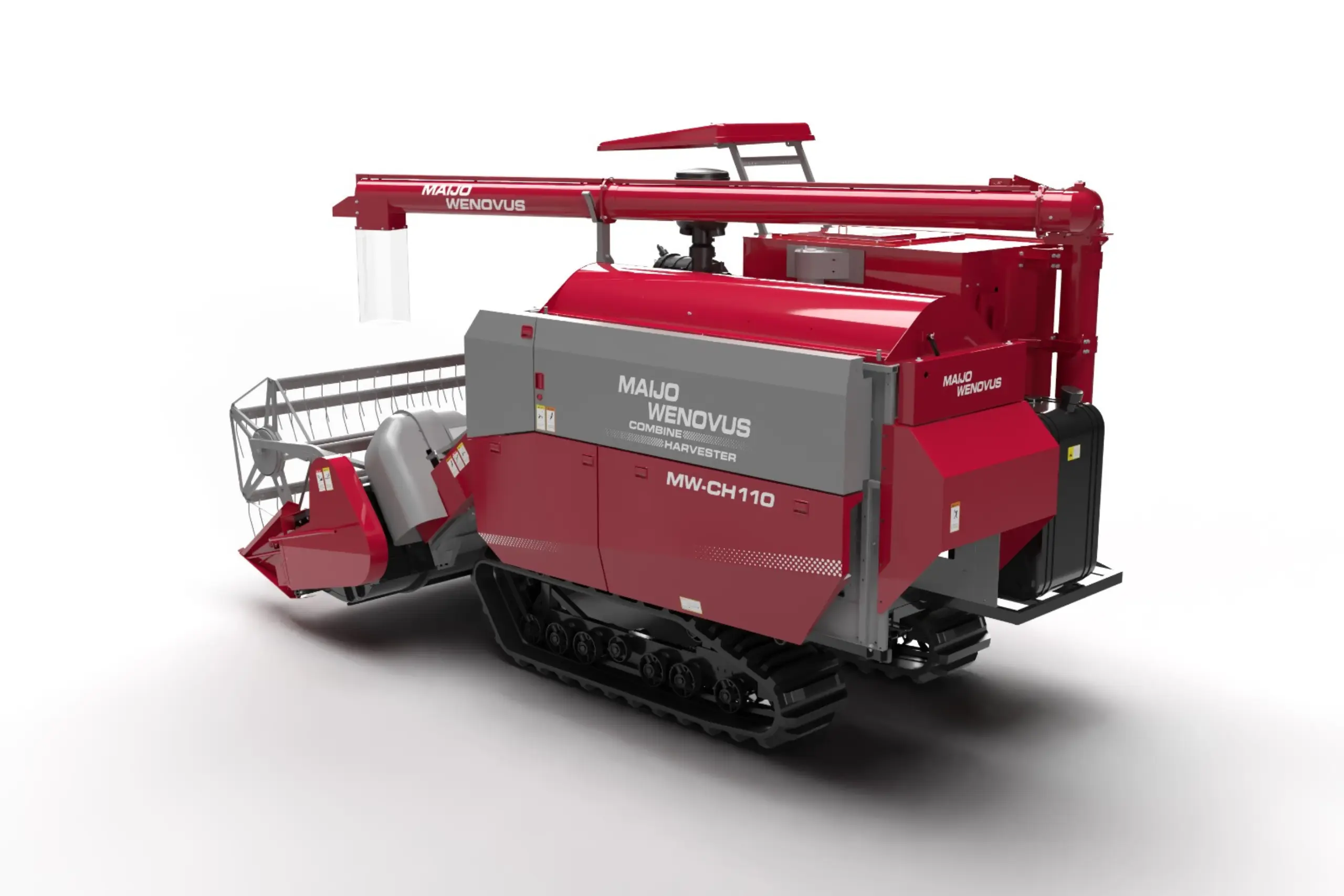

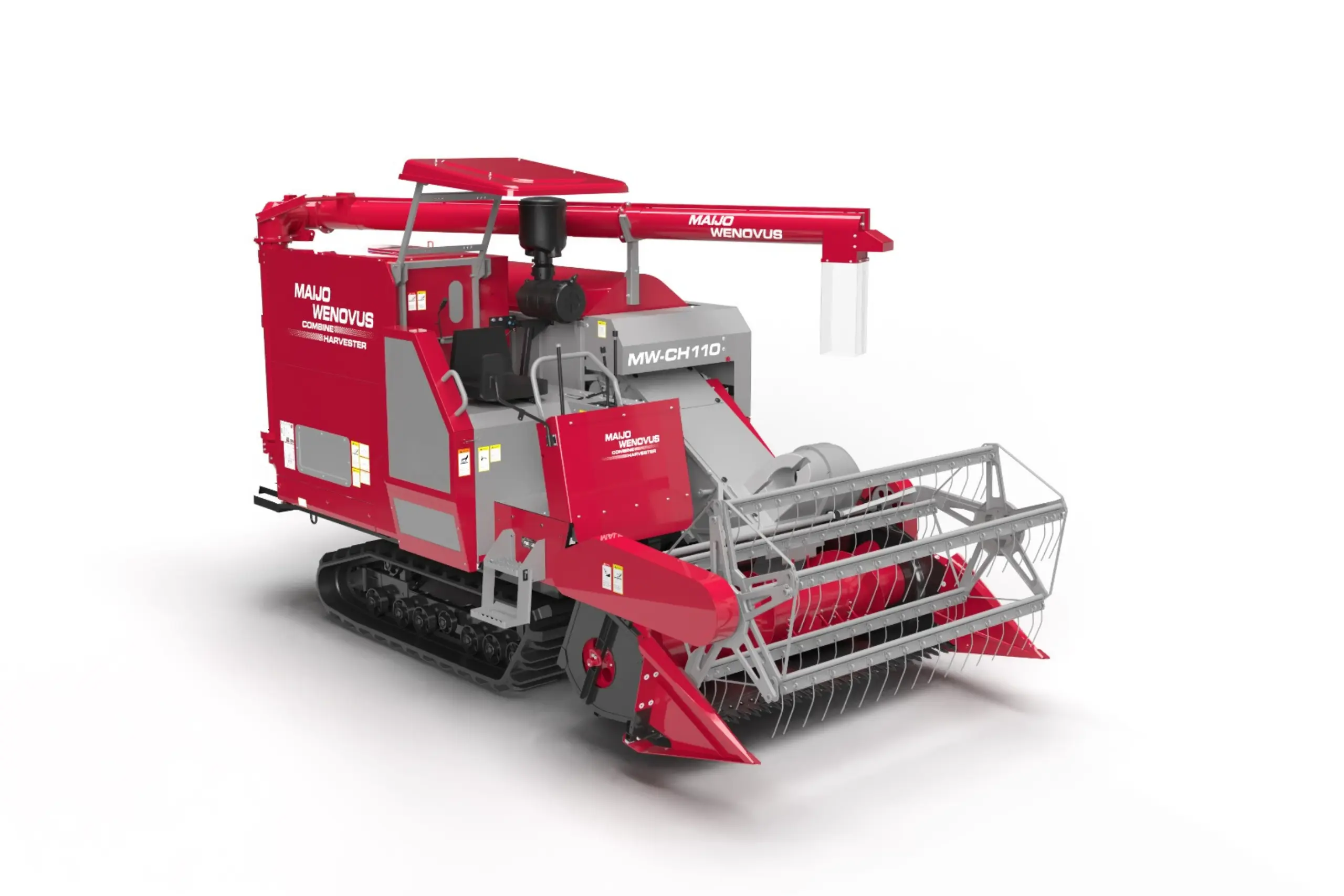

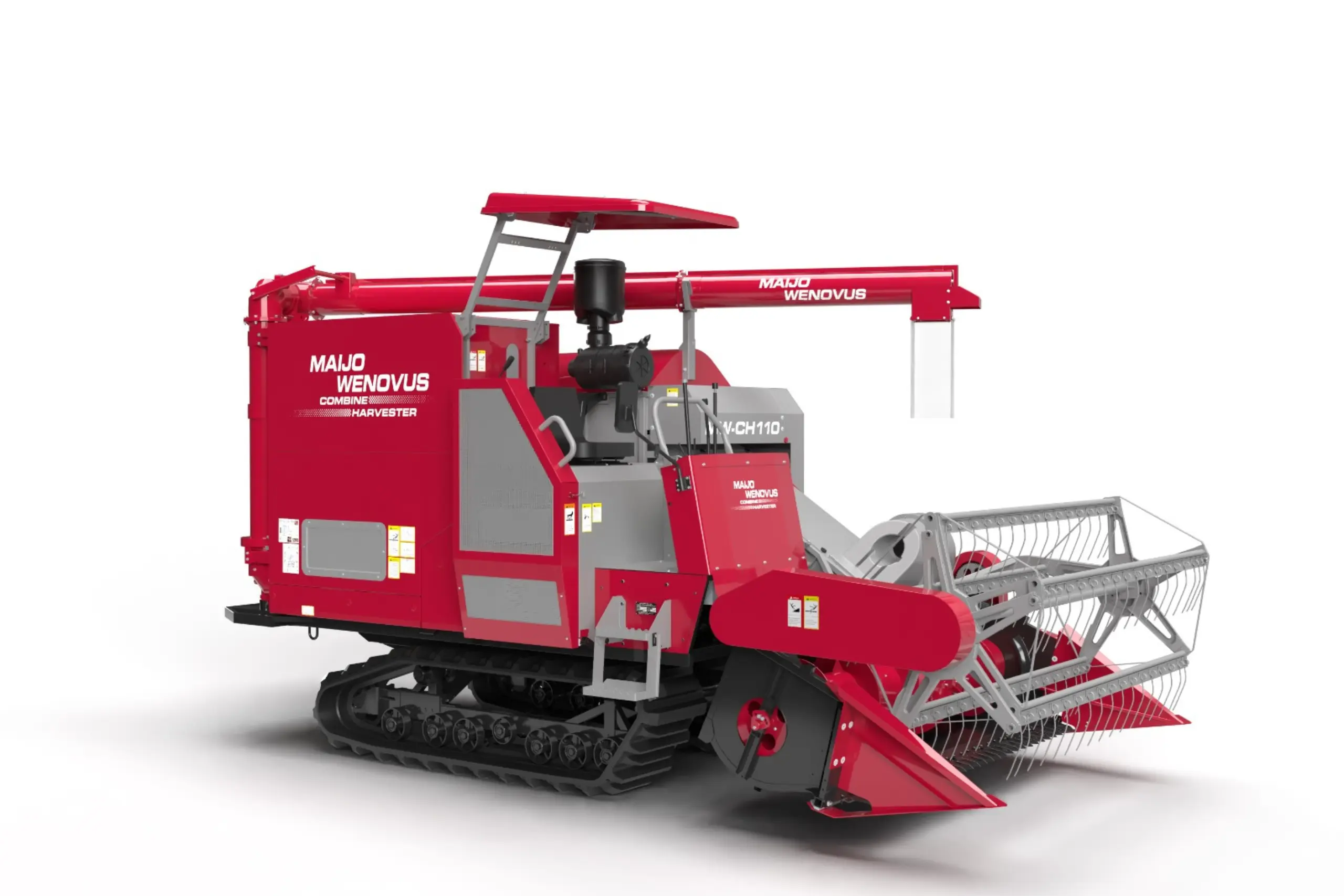

The Maijo Wenovus MW-CH110 is a high-performance, self-propelled combine harvester engineered specifically for Indian paddy farmlands. Powered by a 110 HP Quanchai diesel engine and riding on a 550 mm wide rubber crawler, it delivers outstanding efficiency in both wet and dry field conditions — cutting, threshing, and cleaning in a single seamless pass.
Built for India. Built to last.
Indian paddy farming demands a machine that can handle everything — waterlogged fields, heavy-yield crops, long harvest days, and the need for minimal grain loss. The Maijo Wenovus MW-CH110 is designed from the ground up to meet every one of those demands.
At the heart of the MW-CH110 is a 110 HP, 4-cylinder liquid-cooled Quanchai diesel engine. Despite its compact size, this engine delivers exceptional power density while keeping fuel consumption low — and with a 220-litre fuel tank, the machine can run continuously for a full 24 hours without a single refuelling stop. That means more crop harvested per day, with fewer interruptions.
The MW-CH110’s 2.2-metre cutting width significantly reduces the number of field turns required per operation, boosting overall productivity. The header features a hydraulically adjustable reel with eccentric spring fingers, which can be lowered further to grip and reap even fallen or lodged rice stalks — a common challenge in high-yield paddy cultivation. Reel revolution speed is adjustable across three stages to match different crop densities and machine speeds.
Threshing is handled by a long, large-diameter cylinder — 620 mm in diameter and 2,200 mm in length — which creates a wide threshing space, dramatically reducing grain loss even in high-volume crop conditions. The cleaning system uses a 3-way air stream design paired with a 4-blade centrifugal winnowing fan, ensuring stable, precise separation of grain from chaff across the entire sieve surface. The chaff sieve can be independently adjusted front and rear across five stages, giving operators fine control over cleaning quality depending on crop moisture and volume.
Harvested grain is stored in a 1,700-litre (1.6 m³) grain tank — large enough to keep the machine working for extended periods even on large fields. When the tank is full, a 270° rotation grain unloading arm extends the reach of discharge, making it fast and convenient to offload into any accompanying vehicle.
For wet paddy field performance, the MW-CH110 stands apart. The 550 mm wide, 56-section rubber crawler track (grounded length: 1,890 mm) distributes the machine’s weight over a large contact area, minimising ground pressure and preventing sinking. A minimum ground clearance of 350 mm keeps the undercarriage clear of mud accumulation, and the upper rear-mounted exhaust pipe ensures no mud ingestion when reversing in flooded conditions. The 55 CC high-capacity HST provides smooth, responsive transmission even in the most demanding wet field situations, while the centre-balanced body layout maintains left-right equilibrium for cleaner threshing and lower grain loss on uneven terrain.
The machine is built for durability in every component. The 95 CC gearbox features high-grade oil seals and bearings, the threshing concave is divided into six replaceable blocks for easy rotation and individual replacement, and the track rollers are heat-treated with thickened rubber at wear-prone sections. The reinforced chassis and frames are engineered to handle the stress of continuous heavy-duty field operation season after season.
Operator experience has not been overlooked. A single right-hand joystick controls three simultaneous functions — turning, raising/lowering the reaper, and adjusting reel height — reducing complexity and fatigue during long shifts. A comfort armrest, wide sun canopy, built-in dust suction fan, and spacious operator platform ensure the driver can work comfortably through extended harvesting days. The easy gear shift mechanism returns the main shift lever to neutral automatically when the brake pedal is pressed, preventing jump-starts on engine restart.
The Maijo Wenovus MW-CH110 is not just a harvester — it is a complete harvesting system, designed to deliver maximum yield recovery with minimum loss, minimum downtime, and maximum operator comfort, harvest after harvest.
Engine Quanchai 4C6-110M22 · 110 HP (80 kW) · 4-cylinder · Water-cooled · 4-stroke · 2,400 RPM · 220 L fuel tank
Dimensions & Weight 5,350 × 2,650 × 2,980 mm (L×W×H) · 3,680 kg · Feeding capacity: 6.0 kg/s
Header 2,200 mm cut width · 900 mm reel dia · 5 cutter bars · Hydraulic height adjust · Eccentric spring finger reel · Spiral auger · Stubble height: 40 mm+
Threshing 620 mm dia × 2,200 mm cylinder · Longitudinal axial flow · Rasp bar · 6-block grid concave · Auger returns
Cleaning Centrifugal fan + oscillating sieve · 3-way air stream · 400 mm winnowing fan · 5-stage independent sieve adjustment
Grain Tank 1,700 L (1.6 m³) · 270° rotation unloading · Extended reach arm
Transmission & Track HST (55 CC) + mechanical gearbox (95 CC) · 3 working gears · Low: 0–1.4 m/s · Mid: 0–1.8 m/s · High: 0–2.68 m/s
Crawler 550 mm wide · 56-section · 1,890 mm ground length · 350 mm ground clearance · Track gauge: 1,250 mm
General Field efficiency: 0.16–1.0 hm²/h · Lodging: fwd <85°, rev <70° · Friction disc brake · Dust removal fan: standard · Alarms: water temp, oil, fuel, tank full, battery
Powerful High-Horsepower Engine
The MW-CH110 runs on a 110 HP, 4-cylinder, water-cooled Quanchai diesel engine — compact in size but high in output density. Its low fuel consumption combined with a 220-litre tank makes all-day operation (up to 24 hours) possible without stopping to refuel, even in demanding wet paddy and high-yield rice field conditions.
Wide 2.2-Metre Cutting Width
A 2,200 mm header reduces the number of passes and turning cycles required per field, directly improving operational efficiency. The hydraulically adjustable reel with eccentric spring fingers can be lowered to securely gather and reap even lodged or fallen rice stocks that conventional harvesters miss.
3-Level Reel Speed Control
The reel revolution is switchable across three speed stages to match specific crop conditions — dense standing crop, lodged crop, or voluminous harvest — preventing head loss and reducing crop wastage across varied field situations.
Large-Diameter, Long Threshing Cylinder
The 620 mm × 2,200 mm threshing drum creates an expansive threshing space, ensuring high-volume crop is processed thoroughly with minimal grain loss. The 6-block concave structure allows individual block rotation and replacement without removing the entire assembly, reducing maintenance time significantly.
3-Way Air Stream Cleaning System
A stable stream of air is distributed across three directions through the sieve case, working alongside the 4-blade centrifugal winnowing fan to maintain precise grain-chaff separation even during peak-volume processing. This system minimises cleaning losses and delivers cleaner grain output.
5-Stage Independent Sieve Adjustment
The chaff sieve can be adjusted in five stages independently for the front and rear sections. This lets the operator fine-tune cleaning performance based on crop moisture, straw volume, and field conditions — reducing cut straw in the grain tank and improving overall purity.
1,700-Litre Grain Tank with 270° Rotation Unloading
The large-capacity grain tank reduces unloading frequency during field operations. The 270° rotation unloading arm with extended reach allows flexible discharge into transport vehicles parked at various angles — saving time and improving workflow on large fields.
High-Performance Wet Field Capability
The 550 mm wide high-lug rubber crawler, 350 mm ground clearance, centre-balanced body layout, and 55 CC HST transmission work together to deliver confident, stable performance even in deep, waterlogged paddy fields. The upper rear exhaust pipe prevents mud ingestion when reversing in flooded conditions.
Highly Durable Transmission
The 95 CC gearbox is fitted with high-grade oil seals and bearings, with contained valves and cylinders that extend service life. Seals and bearings are designed for straightforward field replacement, reducing dependence on service centre visits.
Reinforced Chassis and Sealed Rollers
The machine’s reinforced frame is engineered for the stresses of continuous heavy-duty field use. Heat-treated track rollers feature thickened rubber at wear-prone bend points (10 mm thickness), extending the service life of both the roller and the rubber track.
Reverse Cutter Bar Mechanism
A lever conveniently located at the operator’s side reverses the feeder, reel, cutting blade, and auger drum simultaneously — clearing any clogging in the harvesting unit quickly without the operator needing to leave the seat or use tools.
Single-Lever Joystick Operation
Three key functions — turning left/right, raising/lowering the reaper, and adjusting reel height — are all managed from a single right-hand joystick. With the hand resting on an ergonomic armrest, the operator maintains full control comfortably through long working days.
Easy Maintenance Design
Upward-opening side covers, a wide-opening grain tank door with a simple locking mechanism, a right-side cleaning window on the grain tank, and the lightweight 6-part concave structure all make routine cleaning and maintenance faster and less strenuous.
Dust Suction Fan (Standard)
A dust collector built into the feeder house draws dust away from the reaper unit and operator’s seat during dry crop harvesting, significantly improving visibility and the working environment for the operator.
Comprehensive Alarm System
Dashboard indicators monitor water temperature, engine oil level, fuel level, grain tank capacity, and battery charging status — giving the operator real-time awareness of machine health and preventing unplanned downtime.
The Maijo Wenovus MW-CH110 is purpose-engineered for paddy (rice) harvesting across the full range of Indian field conditions, and is equally capable in other grain crops.
Wet Paddy Fields The MW-CH110’s primary design environment. The wide rubber crawler, high ground clearance, centre-balanced weight distribution, and HST transmission allow the machine to operate confidently in waterlogged, soft, and uneven paddy fields where wheeled harvesters sink or stall.
Dry Paddy Fields With its high-horsepower engine, wide cutting width, and large grain tank, the MW-CH110 delivers fast, efficient harvesting across large dry paddy fields, covering up to 1.0 hm² per hour under optimal conditions.
High-Yield and Lodged Crops The extended reel lowering allowance and 3-level reel speed adjustment make the MW-CH110 highly effective in fields where heavy grain weight has caused stalks to fall. The machine can securely gather and process lodged rice that conventional harvesters cannot reliably harvest.
Large-Scale Farm Operations The combination of a 220-litre fuel tank, a 1,700-litre grain tank, and a maximum travel speed of 2.68 m/s allows the MW-CH110 to work extended hours across large farm plots with minimal stops — ideal for custom hiring operators and large farming enterprises.
Wheat and Other Grain Crops While optimised for paddy, the MW-CH110’s threshing and cleaning systems are adaptable to other grain crops including wheat, making it a versatile investment for farms that cultivate multiple crops across the season.
Warranty & Authorised Service The warranty on the Maijo Wenovus MW-CH110 is valid only when the machine is installed, operated, and serviced by authorised George Maijo Industries technicians or certified dealer technicians. Any modification, unauthorised repair, or installation by non-authorised personnel will render the warranty null and void.
Performance Figures Field efficiency, fuel consumption, and throughput figures stated in this page are based on standard test conditions. Actual performance may vary depending on crop variety, field conditions, soil type, operator experience, and maintenance practices.
Specifications Subject to Change George Maijo Industries Pvt. Ltd. reserves the right to modify product specifications, features, or design without prior notice, in the interest of continuous product improvement.
Image Reference Product images are for illustration purposes. Actual product colour, finish, and configuration may vary slightly from those shown.
For installation, servicing, or warranty claims, please contact your nearest authorised George Maijo dealer.
The Maijo Wenovus MW-CH110 is not simply a machine — it is a harvesting solution built around the realities of Indian paddy farming. From the power of its Quanchai engine to the precision of its 3-way cleaning system, from the robustness of its crawler track in waterlogged fields to the comfort of its single-lever joystick, every element has been engineered to help the Indian farmer harvest more, lose less, and work smarter.
Whether you are a smallholder managing seasonal harvests or a custom hiring operator running the machine through multiple fields every day, the MW-CH110 delivers the reliability, efficiency, and durability that Indian agriculture demands.
